Description
| AC Input | 100-240Vac~ 11-5.5A 50-60Hz (Not for China)/200-240Vac~ 5.5A 50-60Hz (Only for China) |
| DC Output | +3.3V/+5V/+12V/-12V/+5Vsb |
| Max Output Current | 20A/20A/70.83A/0.3A/3A |
| Max Combined Power | 120W/850W/18.6W/ |
| Total Power | 850W |
SPECIFICATIONS

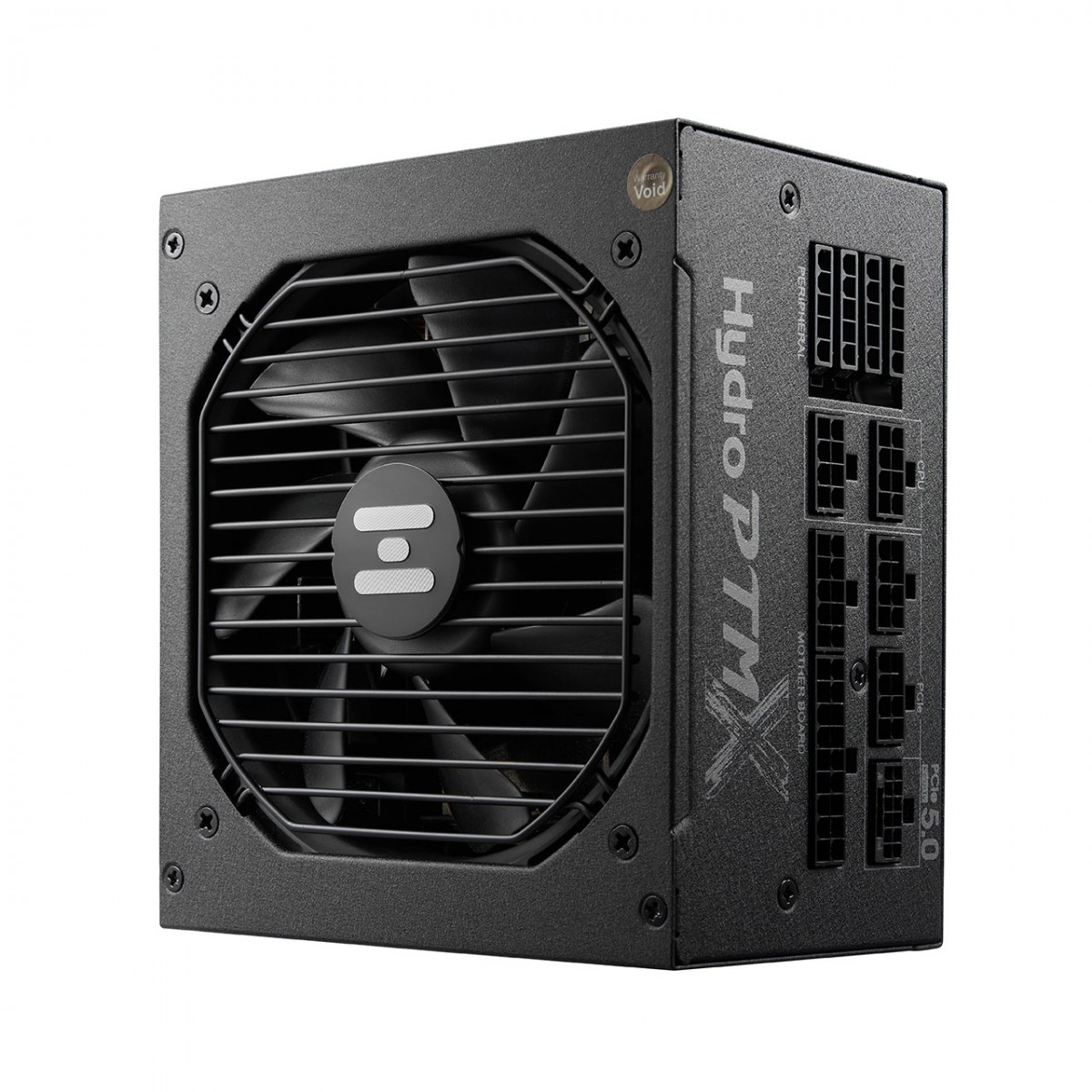

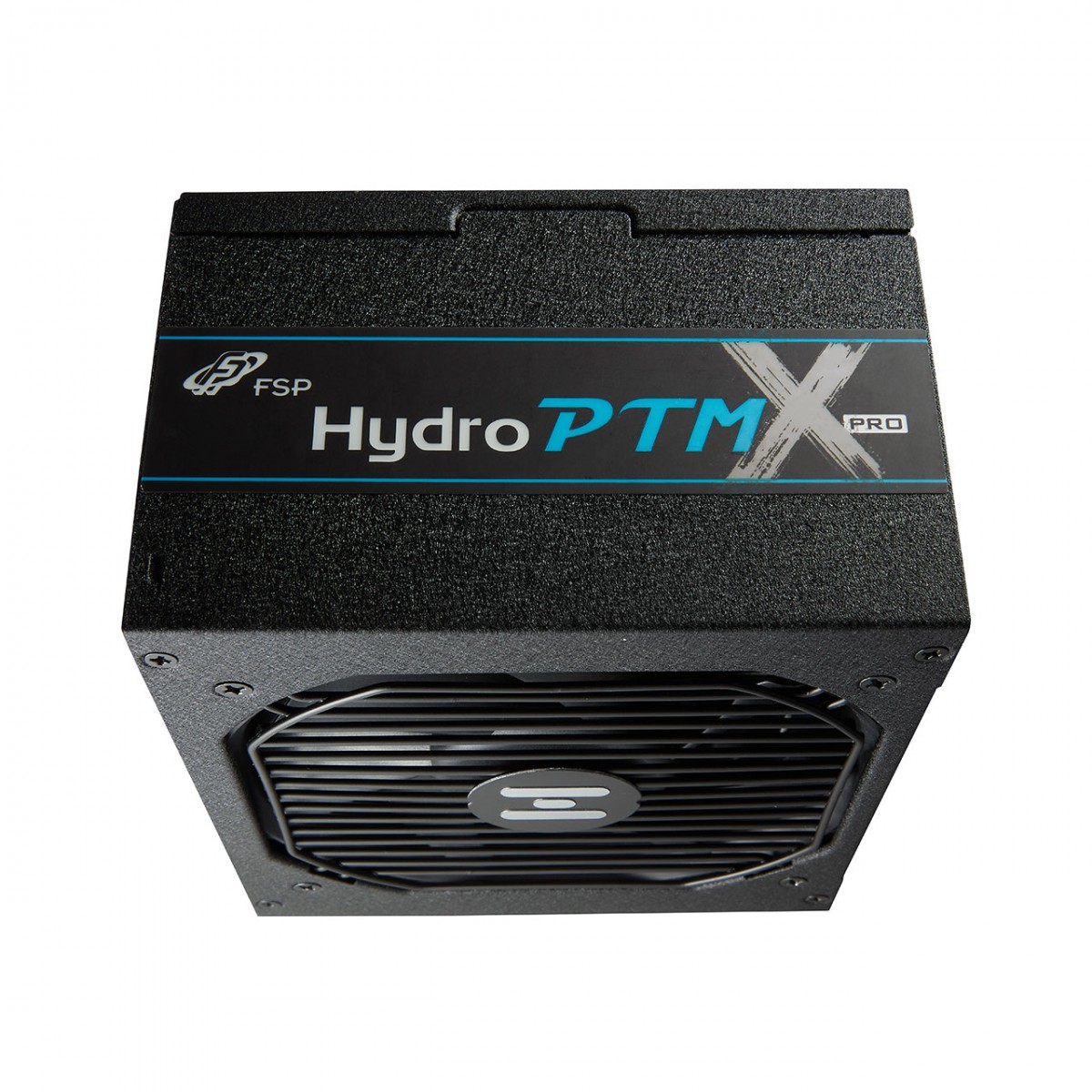

| Model | HPT3-850M,Gen5 |
| Rated Output Power | 850W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| Input Voltage | 100-240V |
| Input Current | 13-6A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 92% |
| Fan Type | FDB fan, 120mm |
| Dimensions(L x W x H) | 130×150×86 mm |
| Operation Temp. | 100,000 Hrs |
| Protection | OCP,OVP OPP, SCP, OTP |
