Description
Essentials
| Product Collection | Intel® Server M50FCP Family |
| Code Name | Products formerly Fox Creek Pass |
| Launch Date | Q1’24 |
| Marketing Status | Launched |
| Limited 3-year Warranty | Yes |
| Extended Warranty Available for Purchase (Select Countries) | Yes |
| Chassis Form Factor | 2U Rack |
| Chassis Dimensions | 770 x 438 x 87 mm |
| Board Form Factor | 18.79″ x 16.84″ |
| Rack Rails Included | No |
| Compatible Product Series | 4th and 5th Generation Intel® Xeon® Scalable Processors |
| Socket | Socket-E LGA4677 |
| TDP | 350 W |
| Heat Sink Included | No |
| System Board | Intel® Server Board M50FCP2SBSTD |
| Board Chipset | Intel® C741 Chipset |
| Rack-Friendly Board | Yes |
| Power Supply | 2100 W |
| Power Supply Type | AC |
| # of Power Supply Included | 0 |
| Redundant Fans | Yes |
| Redundant Power Supported | Yes |
| Backplanes | Included |
| Included Items | (1) – 2U 2.5″ Chassis – iPN M36826-xxx, (1) – Front Panel (left) USB cable – iPN K67061-xxx, (1) – Front panel (left) with two USB ports – iPN K48177-xxx, (1) – Front panel (right) cable pin – iPN K67059-xxx, (1) – Front panel (right) with control panel – iPN K48178-xxx, (1) – Server board – iPC M50FCP2SBSTD, (1) – Standard 2U air duct (for 2U-Tall HS) – iPC FCPDUCTSTD, (1) 8 x 2.5″ combo HSBP – iPC CYPHSBP2208, (1) I2C cable, server board to HSBP– iPN K63232-xxx, (1) power cable, for 3x HSBPs – iPN K62572-xxx, (16) – DIMM blanks – iPN M45676-xxx, (2) – E1B (MCC) processor clips – iPN AXXSPRMCCCC, (2) – E1A (XCC) processor clips – iPN AXXSPRXCCCC, (2) – Intel® RAID Maintenance Free Backup Unit (RMFBU) bracket, (2) – Riser card assembly brackets, (6) – Single-rotor system fans – iPC CYPFAN2UKIT, (8) 2.5″ drive blanks – iPN K71491-xxx, (8) 2.5″ SSD mounting rails with lever – iPN K71493-xxx, NOTE: NO PSU included |
Supplemental Information

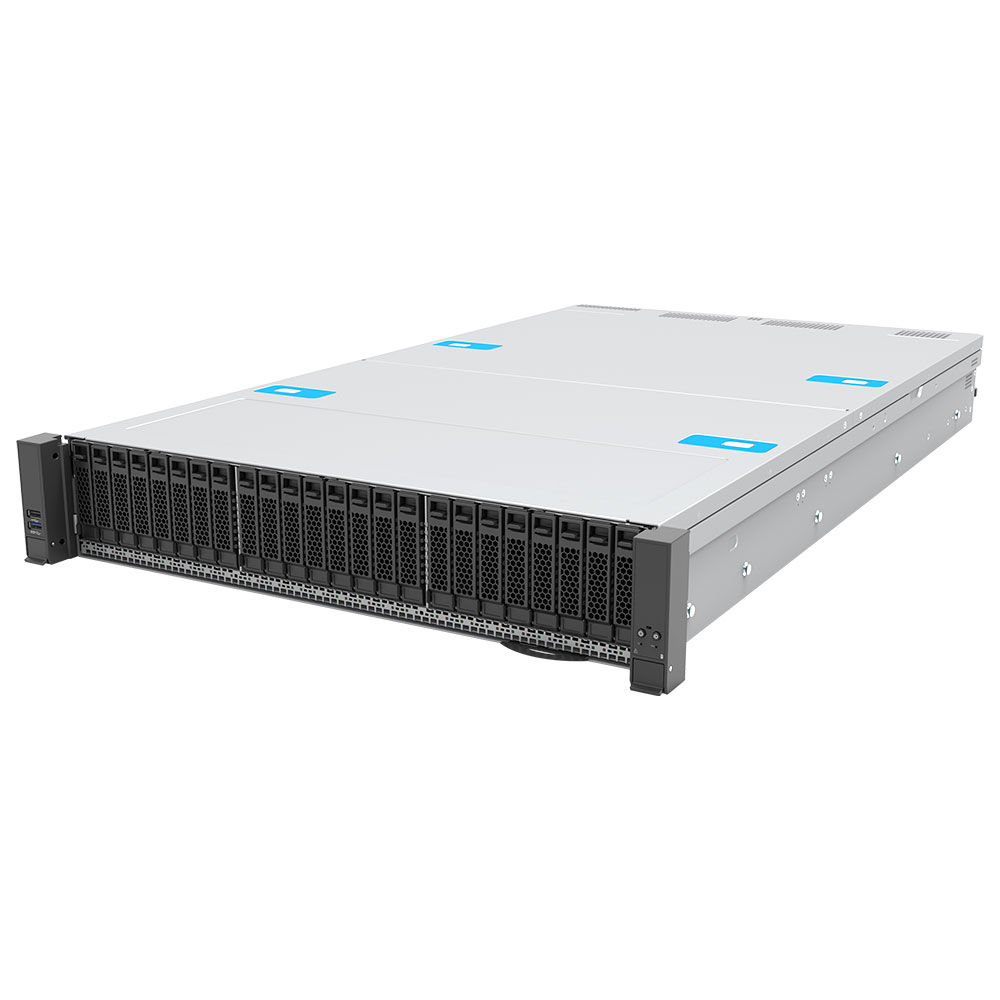

| Description | Integrated 2U system featuring an Intel® Server Board M50FCP2SBSTD, supporting two 4th or 5th Generation Intel® Xeon® Scalable processors, up to (24) 2.5″ SSD with air cooling., NOTE: NO PSU included |
Memory & Storage
| Memory Types | 3DS-RDIMM, 9×4 RDIMM, DDR5 (RDIMM) |
| Max # of DIMMs | 32 |
| Max Memory Size (dependent on memory type) | 12 TB |
| # of Front Drives Supported | 24 |
| Intel® Optane™ Persistent Memory Supported | No |
Processor Graphics
| Integrated Graphics ‡ | Yes |
Expansion Options
| PCI Express Revision | 5.0 |
| Riser Slot 1: Total # of Lanes | 32 |
| Riser Slot 2: Total # of Lanes | 32 |
| Riser Slot 3: Total # of Lanes | 16 |
I/O Specifications
| Open Compute Port (OCP) Support | 1 x 3.0 |
| # of USB Ports | 5 |
| Total # of SATA Ports | 10 |
| USB Configuration | One USB 3.0 port at back panel, Two USB 2.0 ports at back panel, One USB 3.0 port front panel, One USB 2.0 port front panel |
| Max # of UPI Links | 3 |
| RAID Configuration | 0/1/5/10 |
| # of Serial Ports | 1 |
Package Specifications
| Max CPU Configuration | 2 |
Advanced Technologies
| Advanced System Management Key | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Remote Management Module Support | Yes |
| Integrated BMC with IPMI | IPMI 2.0 & Redfish |
| Intel® Node Manager | Yes |
| Intel® Advanced Management Technology | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| TPM Version | 2.0 |
Security & Reliability
| Intel® Total Memory Encryption | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
