Description

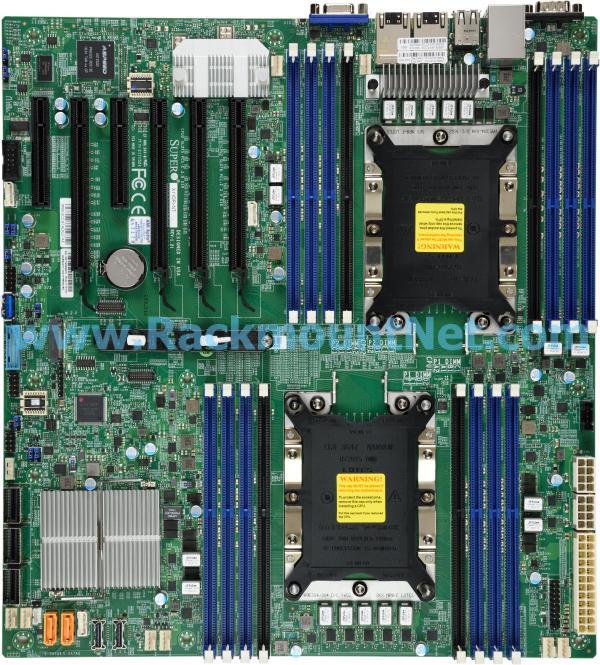

SUPERMICRO MOTHERBOARD X11DPI-N Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s, CPU1: Skylake-F CPU supported, Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots, ASPEED AST2500
Key Features
- Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s, CPU1: Skylake-F CPU supported
- Intel® C621
- Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
- 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 M.2 Interface: PCIe 3.0 x4 M.2 Form Factor: 2260, 2280, 22110, 2 PCI-E 3.0 NVMExpress x4 Internal Port(s)
- 1 VGA port(s)
- Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Dual LAN with GbE from C621 Click here for detail specifications
