Description

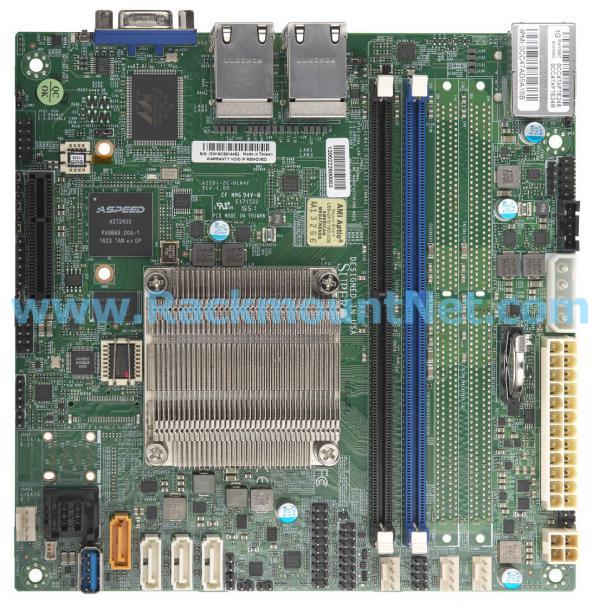

SUPERMICRO MOTHERBOARD A2SDi-2C-HLN4F, Intel Atom Processor C3338, Single Socket FCBGA1310 supported, CPU TDP support 9W, Up to 64GB Registered ECC DDR4-2400MHz, Up to 32GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 2 DIMM slots, ASPEED AST2400 BMC
Key Features
- Intel Atom Processor C3338, Single Socket FCBGA1310 supported, CPU TDP support 9W
- System on Chip
- Up to 64GB Registered ECC DDR4-2400MHz, Up to 32GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 2 DIMM slots
- Expansion slots: 1 PCI-E 3.0 up to x4 (in x4 slot)* Flexible I/O – software configurable in BIOS setup
- 4 GbE LAN ports
- Up to 8 SATA3 (6 Gbps) ports via SoC* Flexible I/O – software configurable in BIOS setup
- I/O: 1 VGA, 1 COM, TPM header
- 1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers)
- Supports 12V DC power input Click here for detail specifications
